Electric Vehicle Supply Equipment (EVSE) is the cornerstone of the electric vehicle (EV) ecosystem, enabling the safe and efficient transfer of electrical energy from the grid to EVs. This article delves into the intricacies of EVSE, covering its definition, components, types, market dynamics, technical standards, future trends, and practical considerations for users.
I. Definition of EVSE
EVSE refers to the infrastructure and components essential for charging electric vehicles. It encompasses charging stations, connectors, cables, and control systems, all meticulously designed to deliver electricity safely and efficiently to EVs. EVSE is not merely a power source; it is a sophisticated system that ensures compatibility, safety, and optimal performance during the charging process.
According to the definition of the International Electrotechnical Commission (IEC), EVSE needs to meet the following conditions:
- Power transmission: Support alternating current (AC) or direct current (DC) input and adapt to the voltage and current requirements of vehicle batteries.
- Safety protection: Built-in leakage protection, overload cut-off and temperature monitoring modules to prevent short-circuit or fire risks.
- Communication ability: Interact with the vehicle BMS (battery management system) through CAN bus or PLC (power line communication) to adjust charging parameters in real time.
For example, the V3 charging pile in the Tesla Supercharger network can reach a peak power of 250kW and uses liquid-cooled cable technology to reduce heat loss during high-current transmission, reflecting the technical complexity of EVSE in efficient energy transmission.
II. Key Components of EVSE
1. Physical Components
- Conductors and Cables: Copper core cables and standardized plugs (such as CCS Combo, Type 2) ensure low-resistance conduction.
- Connectors and Sockets: Contactors and relays control the on and off of current and respond to BMS instructions or emergency shutdown signals.
- Enclosures and Housing: Protection level above IP54, resistant to rain, dust and physical impact.
- Switching Devices: These are safety mechanisms that control the flow of electricity, preventing overcurrent situations and ensuring the safe operation of the charging process.
2. Intelligent Control Systems
- Power Management: The control systems that regulate the charging process, ensuring efficient energy use and preventing overcharging.
- Communication Modules: Protocols like SAE J1772 in North America facilitate communication between the EV and the charging station, enabling features like plug-and-charge and remote diagnostics.
- Safety Protection Systems: These include ground fault detection, overcurrent protection, and emergency stop mechanisms that ensure the safety of both the vehicle and the user during the charging process.
3. Grid Interface

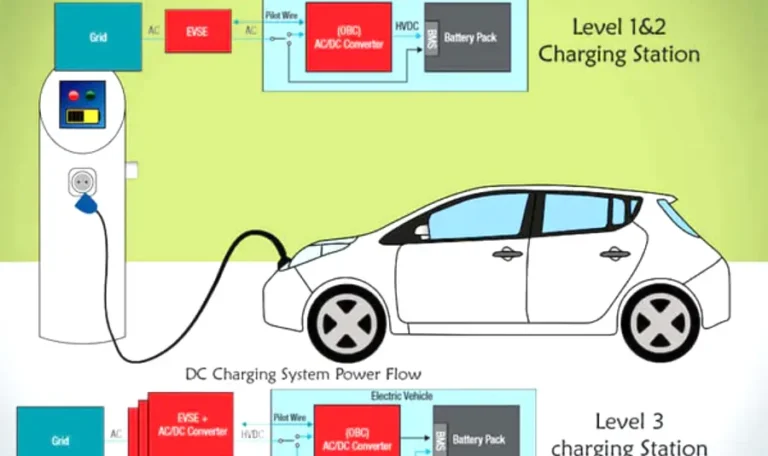

- AC and DC Power Supply: EVSEs can provide both alternating current (AC) and direct current (DC) power, depending on the charging level and the vehicle's requirements.
- Charging Speed Adaptability: The interface supports various charging speeds, from slow (Level 1) to fast (Level 3), accommodating different user needs and vehicle capabilities.
III. Types and Applications of EVSE
1. Classification by Charging Type
- AC Charging (Level 1 and Level 2): Utilizes alternating current to charge the vehicle. Level 1 charging uses standard household outlets, while Level 2 requires dedicated 240V circuits, offering faster charging times.
- DC Fast Charging (Level 3): Delivers direct current at high voltages, enabling rapid charging of EVs. These stations are typically located along highways and in commercial areas to facilitate long-distance travel.
2. Classification by Usage Scenario
- Private Charging Equipment: Installed at residential locations, these EVSEs provide convenient overnight charging solutions for EV owners.EV Engineering Online
- Public Charging Networks: Widely distributed across urban and rural areas, these stations offer charging services to all EV users, promoting the adoption of electric mobility.
IV. Market Development and Driving Factors
1. Market Size and Growth
The global EVSE market has experienced significant growth, driven by the increasing adoption of electric vehicles, government incentives, and advancements in charging technology.
2. Regional Market Characteristics
- North America: Characterized by a rapidly expanding network of public charging stations and a growing number of EVs on the road.
- Asia-Pacific: Home to the largest EV market, particularly in China, with extensive charging infrastructure development.
- Europe: Features a well-established EVSE network, supported by strong governmental policies and environmental initiatives.
V. Technical Standards and Compliance Requirements
1. International Technical Standards
- Connector Standards: Different regions have adopted specific standards for EV connectors, such as SAE J1772 in North America, IEC 62196-3 CCS Type 2 in Europe, and GB/T 20234.3 in China.
- Safety Protocols: Standards like ISO 15118 define the communication protocols between EVs and EVSEs, enabling features like plug-and-charge and encrypted data transmission.
2. Certification and Compliance
- UL and CE Certifications: These certifications ensure that EVSEs meet safety and performance standards, providing assurance to consumers and regulatory bodies.
- National Electrical Code (NEC) Compliance: In the United States, EVSE installations must adhere to NEC Article 625, which outlines the requirements for safe and effective charging infrastructure.
VI. Future Trends and Innovation Directions
1. Technological Evolution
- Smart Charging: Integrating features like Vehicle-to-Grid (V2G) communication and dynamic pricing to optimize energy use and reduce costs.
- Wireless Charging: Developing inductive charging systems that eliminate the need for physical connectors, enhancing user convenience.
2. Sustainable Development Pathways
- Integration with Renewable Energy: Utilizing solar and wind power to charge EVs, reducing reliance on fossil fuels and promoting environmental sustainability.
- Circular Economy Initiatives: Recycling materials from end-of-life EV batteries for use in new EVSEs, contributing to resource conservation and waste reduction.
VII. User Guide and Practical Advice
1. Key Factors in Selecting EVSE
- Charging Speed Requirements: Assessing whether Level 1, Level 2, or DC fast charging is needed based on daily driving habits and vehicle specifications.
- Device Certification Status: Ensuring that the EVSE has the necessary certifications, such as UL or CE, to guarantee safety and compliance.
- Local Regulatory Compatibility: Verifying that the EVSE meets local electrical codes and regulations, such as NEC Article 625 in the U.S.
