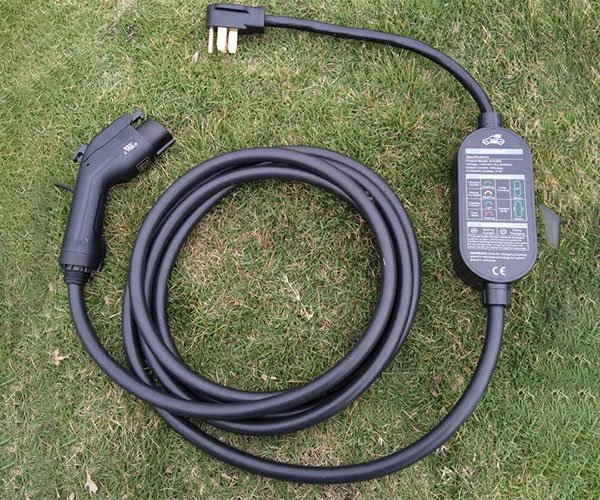

Portable EV charger basic version
The Power X portable EV charger is engineered for convenience, serving as an ideal charging solution both at home and while traveling. Its lightweight (under 2.9 kg) and compact form factor allow for effortless storage in your vehicle's trunk, making it easily transportable.
Designed for simplicity, it features a plug-and-play mechanism that enables straightforward charging without needing complex configurations. This versatile charger supports an adjustable power output from 3kW up to 11kW and is compatible with Type 1, Type 2, and GBT plug standards, accommodating the majority of electric vehicles globally.
- Charging current can be easily adjusted using dedicated buttons.
- Features integrated Type B RCD protection, safeguarding against electrical shock, potential fire risks, and damage to your vehicle or the charger.
- Built with a robust IP67-rated casing, offering superior resistance to water and dust, and ensuring operation across extreme temperatures (-30°C to 60°C).
- Complies with the IEC 62752 standard and holds CE, REACH, and RoHS certifications.
- Equipped with a clear 1.3-inch OLED screen that displays essential information like voltage, current, and the real-time progress of your charging session.
About Us
User-Friendly Operation
The Power X portable charger is designed with the user experience in mind. Featuring a sleek, streamlined appearance, it comes standard with a durable 5-meter TPU cable, with options for custom lengths available. Control is made simple through an intuitive two-button panel. A distinct LED indicator provides immediate status updates: Yellow confirms the charger is on standby, Green indicates active charging, and Red signals a fault condition, ensuring a seamless and worry-free charging process for every user.
About Us
Waterproof Features
Engineered for durability in diverse conditions, the Power X portable charger boasts an impressive IP67 waterproof and dustproof rating, complemented by IK10 impact protection. This robust construction ensures dependable operation even when exposed to heavy rain, sand, or dust, making it suitable for various outdoor environments. It has undergone rigorous testing for over 48 hours in extreme temperature conditions, ranging from -30°C to 60°C, proving its capability to maintain stable and reliable performance during prolonged exposure to severe heat or cold.
About Us
Safety Protection & Certification
Safety is a core feature of the Power X charger. It is equipped with Type B leakage protection (RCD) and incorporates multiple layers of safety protocols, including safeguards against overvoltage, overload, short circuits, and over-temperature situations. These features work together to ensure secure operation over extended use. Furthermore, the charger holds CE, RoHS, and EMC certifications. The materials used are environmentally friendly and meet stringent global standards. Its rugged design ensures that internal components remain secure and functional even after undergoing extreme crush force and drop tests.
Why choose ANSEV Portable EV charger
Charging Indoor/Outdoor
The Honors Portable EV Charger delivers a flexible and straightforward charging solution, perfectly suited for use in your home garage or while traveling. Simply connect it to a compatible standard 220-240V electrical outlet. You can initiate charging immediately or utilize scheduling features, perhaps setting it to charge during off-peak hours overnight. Its ease of use and reliable charging speed make it an excellent choice for enhancing your EV charging experience.
Now Ultra-long life
Built for exceptional longevity, the Honors Portable EV Charger is designed to withstand the rigors of real-world usage. Its construction is robust enough to endure significant impacts – it can even remain undamaged if accidentally driven over by a car. Whether facing drops, bumps, or everyday wear and tear, this charger is engineered to deliver consistently flawless performance throughout its extended lifespan.
Portable EV Charger for 99% of EV
With broad compatibility, the Honors Portable EV Charger is designed to work seamlessly with the vast majority (estimated at 99%) of electric vehicles currently available. Users benefit significantly from its highly waterproof design, which ensures reliable operation and provides confidence even when charging during inclement weather conditions.
Why choose ANSEV Portable EV charger
| Specification | Item | 3.7KW | 7.4KW | 9.6KW | 11KW |
|---|---|---|---|---|---|
| Electrical Parameters | Input/Output Voltage | AC110V/230V | AC110V/230V | AC120V/240V | AC 400V |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| Max.Output Power | 1-Phase up to 3.7kW(@230V 16A) | 1-Phase up to 7.4kW(@230V 32A) | 1-Phase up to 9.6kW(@240V 40A) | 3-Phase up to 11kW(@400V 16A) | |
| Max.Output Current | 16A for 1-Phase | 32A for 1-Phase | 40A for 1-Phase | 16A for 3-Phase | |
| Standard IEC 62752:2016/COR1:2019 | |||||
| Certificate | CE | ||||
| Safety Protection | Over Voltage,Under Voltage,Over Load,Short Circuit Leakage,Over-Temp,Lightning Protection | ||||
| Function And Accessory | LED Indicators | Yes | |||
| OLED Screen | Yes | ||||
| RCD | Type B | ||||
| Current Adjustment | Yes | ||||
| Delay Charging Adjustment | Yes | ||||
| Ethernet/WIFI/4G/Bluetootht | No | ||||
| Working Environment | Protection Degree | IP 67 | |||
| Operation Temperature | -30℃～60℃ | ||||
| Relative Humidity | ≤95%RH | ||||
| Operating Elevation Limit | ≤2000m | ||||
| Cooling | Natural Air Cooling | ||||
| Standby Power Consumption | <0.5W | ||||
| Mechanical Parameters | Charging Cable | 5m (Standard configuration) | |||
| Control Box | HxWxD=200mm*90mm*52mm | ||||
| Weight | ≤3.5kg | ||||
| Colour&Material | Black;Tempered Glass,PC | ||||
FAQ
Ask Any Questions?
How long for a car to be fully charged with an EV portable charger?
The duration required to fully charge an electric vehicle with a portable charger is determined by two primary factors: the power output of the charger (measured in kilowatts, kW) and the capacity of the vehicle's battery (measured in kilowatt-hours, kWh). As an example, using a 7.6 kW portable charger to charge a vehicle with an 80 kWh battery would take approximately 10 to 11 hours to reach a full charge. You can estimate the charging time using the formula: .
Can I use the portable charger under the rains?
Generally, it is advised not to use portable EV chargers with lower ingress protection ratings (less than IP65) directly in the rain. This is because moisture, steam, or dust could potentially enter the control box and cause damage to the internal electronics. However, our portable charger eliminates this concern as it is certified with an IP67 rating. This certification means it is fully protected against the ingress of water and dust, making it safe to operate even during rainy conditions.
Can I use portable charger as daily charging?
Yes, absolutely. As portable charging technology has advanced, many EV drivers now rely on portable chargers for their regular charging needs, whether for travel, commuting, or as an emergency backup. Standard portable chargers typically include Type A RCD for basic electrical safety. Our portable charger enhances this by equipping both Type A RCD and DC 6mA protection, offering safeguards against a broader spectrum of potential electrical risks. While it's perfectly suitable for daily charging routines, if you require advanced functionalities such as smart energy management integration or highly customized charging schedules, a dedicated wallbox installation might offer more features.
Do I have to install the portable charger when using it to charging my car?
No, installation is not necessary. The portable charger is designed for maximum flexibility and can be used wherever a compatible electrical socket is accessible. Simply plug it in to commence charging. Although the charger unit itself boasts an IP67 rating, it's always prudent to ensure the plug and the wall socket connection point are shielded from direct rainfall during operation. Please ensure the charging cable is managed safely to prevent any risk of tripping; a cable hanger is provided to help with this. Once charging is complete, we recommend storing the portable charger securely, for example, in your vehicle's trunk or using any storage solution provided by the manufacturer.
How to choose a portable charger to charge my car?
Selecting the appropriate portable EV charger involves considering these key points:
- Certifications: Prioritize chargers that are certified and comply with the safety standards relevant to your region. Look for marks such as CE (for the EU market), UL (for the USA market), or CCC (for the Chinese market).
- Plug Standard: Ensure the charger's plug type is compatible with your electric vehicle's charging inlet. Common standards include Type 2 (IEC 62192) prevalent in Europe, Type 1 (SAE J1772) common in North America, and GBT used in China.
- Power Output: Choose a charger whose power output matches your vehicle’s onboard charging capabilities and your typical charging requirements. For instance, if your car can accept charging at 16 Amps on a single phase (common in some regions), a charger rated around 3.7 kW ($ \approx 16A \times 230V $) would be suitable. If your vehicle supports higher power inputs, like 32 Amps three-phase, a more powerful charger (capable of up to 22 kW) could significantly decrease charging times, provided your electrical supply can safely handle the load.
